gravity conveyors

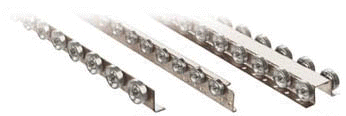

   Rail Wheel Conveyors



Download Hi-Res Tech Drawings (pdf format)

Download catalog page in pdf format


SPECIFICATIONS
RAILS: 12 ga. galvanized steel rails are formed to several different configurations, including RA, RC, RD, RJ, and RU rail wheel conveyors.

WHEELS: 1-15/16" dia. prelubricated ball bearing wheel with hardened raceway, zinc plated, 50 lb. capacity.

AXLES: 1/4" dia. galvanized steel bolt-type with lock nut.

LENGTHS: Available in 1'-0" increments from 1'-0" to 10'-0".

COUPLINGS: Not supplied, specify type required for pricing.

WHEEL CENTERS: 3" centers typical on all patterns.
24 Hour Shipments
Include All 1-Foot Increments
 1'- 0" TO 10'- 0"
On Rail Wheels
